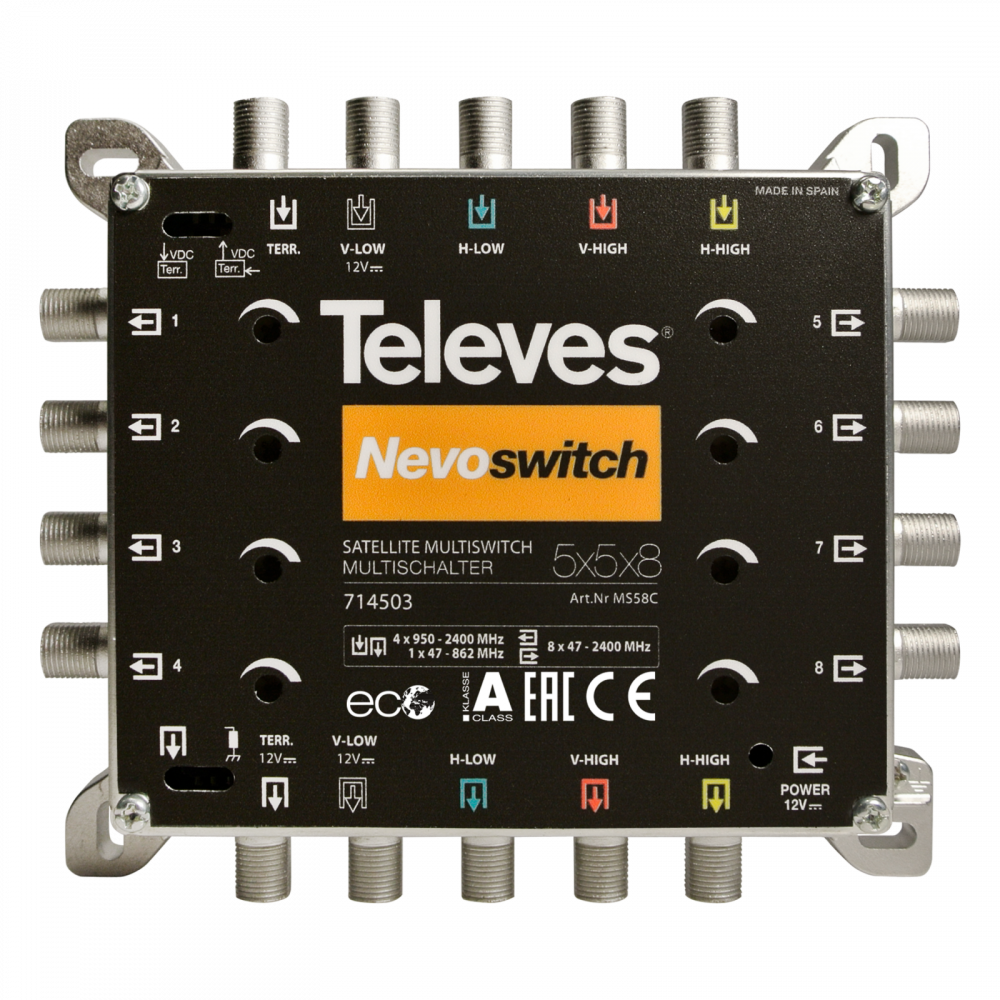

TELEVES NEVOSWITCH 5 ENTREES 8 SORTIES
| Caract. techniq. | |||
| Modèle | 5x5x8 | ||
| Bande passante |
MHz | SAT | 950 … 2200 / 2400 |
| TERR | 47 … 862 | ||
| Niveau de entrée |
dBμV | SAT | 105 |
| TERR | 92 | ||
| Pertes de passage |
dB | SAT | 1.5 … 3 / 4 |
| TERR | 2 | ||
| Pertes deriv. (2)
1..8 / 9..16 / 17..24 / 25..32 |
dB | SAT | 1(1) / – / – / – |
| TERR | 2 / – / – / – | ||
| Isolation | dB | H/V | >30 |
| Users | >25 | ||
| Passage courant | In-Out / Out-In | ||
| Consommation max |
mA | PSU (3) | 40 |
| SAT STB(4) | 35 | ||
| Intervalle de temp | ºC | –5 … +45 ºC | |
| Indice de protection | IP | IP20 | |
(1) Gain
